ET 25/50 Filtration
Great success thanks to their efficiency, reliability, and simplicity
For more than 30 years around the world compact filters have been used and proved great success thanks to their efficiency, reliability, and simplicity they are more and more replacing the traditional sand filters that require underground buried pipe network and mechanical rooms that take spaces and need specialists to maintain the pools specially the public ones.
Compact units are skimmer filtration type and mainly available in two versions:
- On the wall Filter unit.

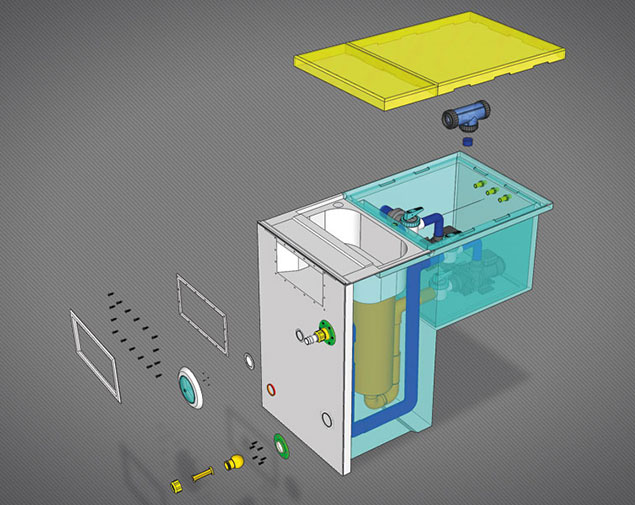

- Integrated Filter unit.
We at Mondial Pools believe in compact filtration technology because it is environment friendly, and we have developed with an international manufacturer special filtration units that meet the requirements of our region in the Middle East.
Features:
- Robust Reinforced Fiber Glass Body.
- Filter is equipped with one or two filter bags (depending on model).
- Filter is equipped with one underwater Led Light.
- Filter is equipped with Speck Pumps 25m3/h - BADU 47/22.
- All valves in the filter are Pentair Valves.
- Filter Bags are in 5 and 15 microns.
- Electric Control Panel is IP 54 with timer.
- Two inlet nozzles one at water level, second at - 1.00 meter under water level.
- Isolated Cover for the mechanical compartment.
Options:
- Salt chlorinator may be added.
- By Pass for any type of heater may be added.
Advantages:
- Easy and quick installation.
- Fine quality filtration up to 5 microns.
- Effective circulation thanks to the top and bottom water nozzles.
- Economical filtration running cost; No periodical back wash operation needed.
- Economical electric consumption; due to the reduced pressure head losses.
- Chemicals and disinfecting products may be easily added.
- Simple Maintenance.
- Designed to avoid stagnant water around the cylinders.
- Filter may be semi-disassembled to run maintenance operation.
- Cover may be replaced with other materials to match swimming pool deck.
